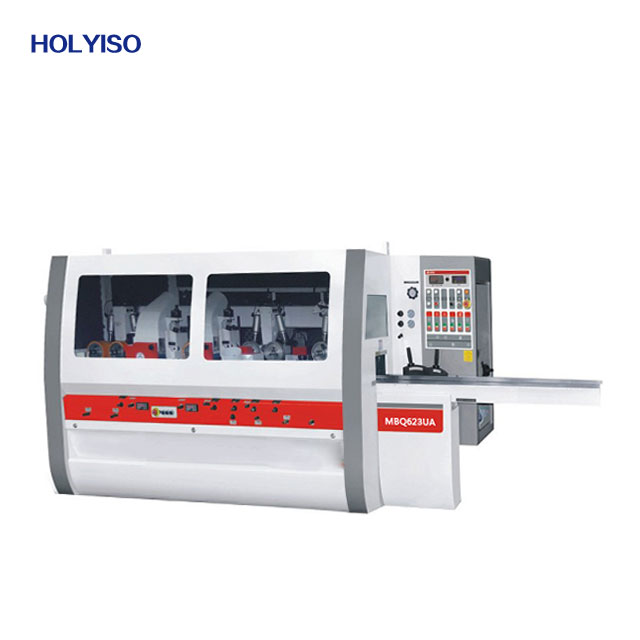

MBQ623UA Four Sides Moulder
MBQ623UA Four Sides Moulder Technical Parameters:ModelMBQ623UAWorking Width25-230mm
MBQ623UA Four Sides Moulder
Technical Parameters:
MBQ623UA | |
Working Width | 25-230mm |
Working Thickness | 8-160mm |
Spindle Number | 6 |
Spindle Diameter | 40mm |
CUTTER DIAMETER | |
First Bottom Cutter Diameter | 110-145mm |
Second Bottom Cutter Diameter | 110-200mm |
Right Vertical Cutter Diameter | 110-200mm |
Left Vertical Cutter Diameter | 110-200mm |
First Top Cutter Diameter | 110-200mm |
Second Top Cutter Diameter | 110-200mm |
MORTOR POWER | |
First Bottom Cutter Motor Power | 5.5kw |
Second Bottom Cutter Motor Power | 7.5kw |
Right Vertical Cutter Motor Power | 5.5kw |
Left Vertical Cutter Motor Power | 5.5kw |
First Top Cutter Motor Power | 7.5kw |
Universal Spindle | 7.5kw |
Feeding Motor Power | 5.5kw |
DIMENSION&WEIGHT | |
Working Table Length | 2000mm |
Suction Hood Diameter | 150mm*6 |
Feeding Speed | 6-30m/min |
Total Power | 45.75kw |
Overall Dimension | 4700*1850*1800mm |
Total Weight | 5000kg |
Features:
1. Numeral control of spindle
2. Main spindle electrical elevation
3. High feeding speed
4. Electrical center lubrication system
5. CE standard
6. Min. working length can be 180mm

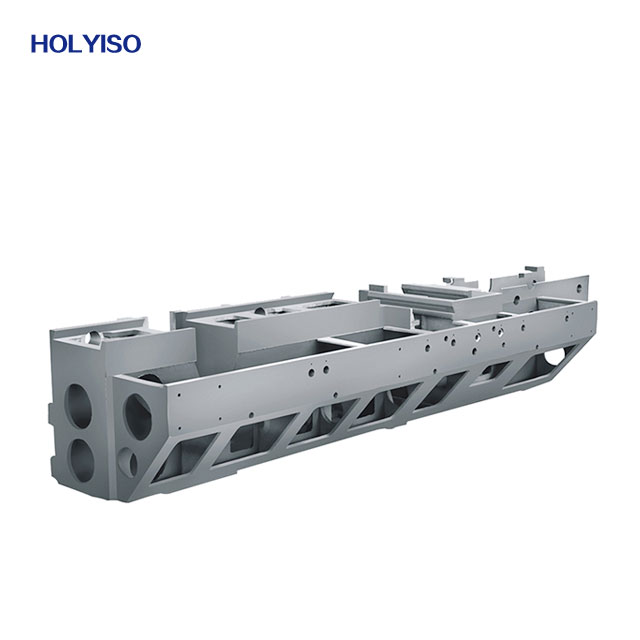

Machine Frame:

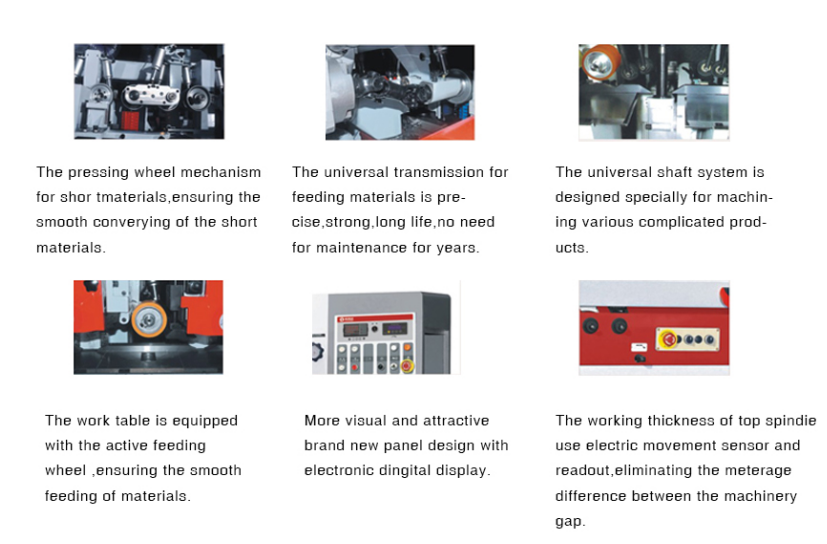

Features:
