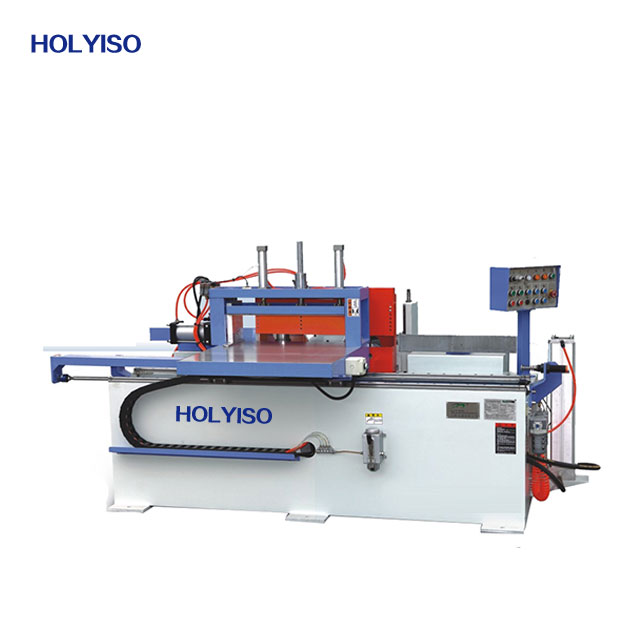

MXB3515 Automatic finger joint shaper machine



Parameter:



Table size760*850mm
Working thickness150mm
Max working width600mm
Main saw spindle diameter30mm
Shaper spindle diameter70mm
Shaper spindle speed6000rpm
Main saw blade speed2840r/min
Scoring saw spindle speed2840r/min
Shaper spindle power11kw
Main saw blade power4kw
Scoring saw power0.75kw
Total power15.75kw
Pressure of air system0.6-0.8MPa
Overall dimensions(LxWxH)2700*1730*1550mm
Weight1800kg

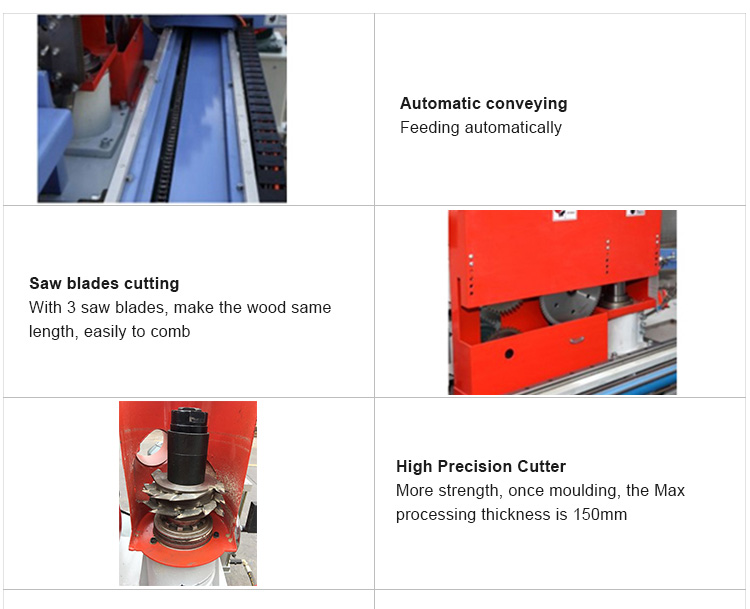

Details:
