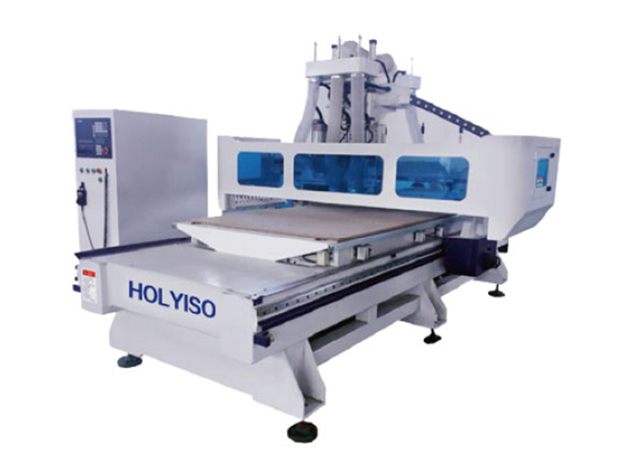

KIN1325-T3 CNC Cutting machine

Technical Parameters :

Application:

1.Materials could be used: Wood, Timber, PMMA, PVC Sheet, ABS sheet, KT sheet, Gemstone, Marble, Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc.

2.Widely used in furniture industry(2D & 3D), furniture decoration industry, carpenter decoration, instrument ndustry, wooden handicraft industry, large plate plane carving, wood furniture carving,density plate engraving, window and door carving etc.

Features :

1.The integral frame structure, with strong rigidity and aging treatment guarantees

the shape and high precision.

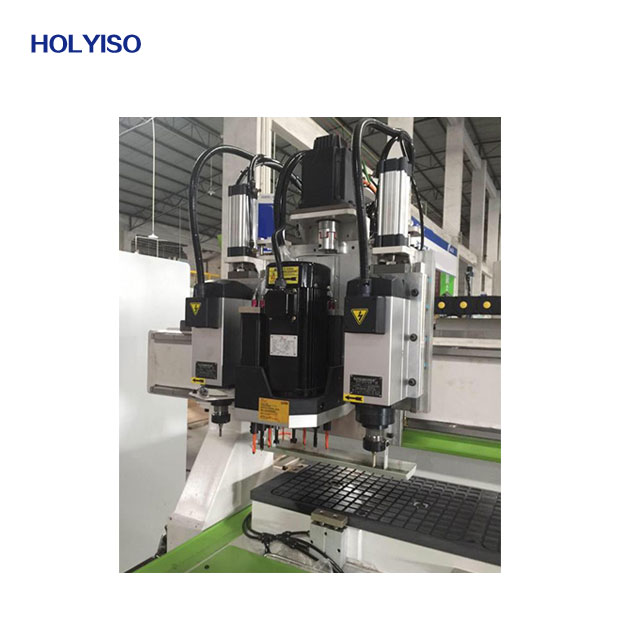

2.Several kinds of optional module unit—single spindle + CNC Drilling package; Double spindles+ CNC drilling packages; 3 spindles and etc.
3.Strong compatibility can reach seamless docking with a variety of furniture design software.
4.Equipped with automatic central lubrication system ensures the efficient operation of the machine.

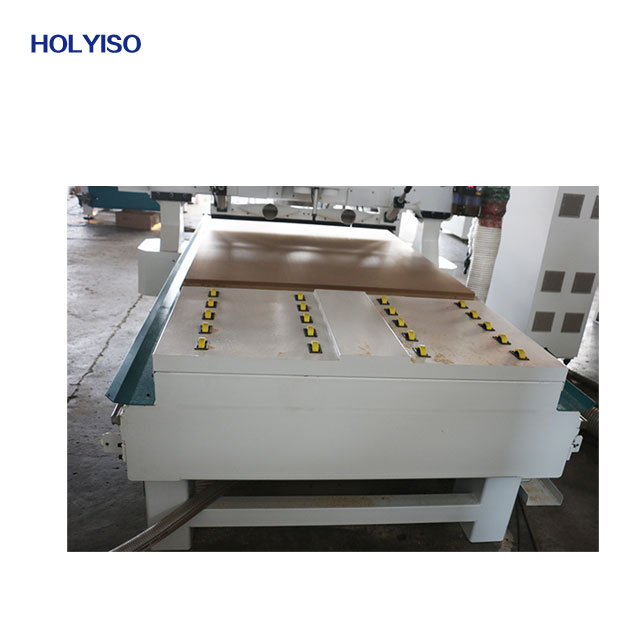

5.Double hollow vacuum adsorption countertops can absorb different sizes of panels. The workable min. width is 25mm
6.Optional:Automatic loading system, automatic unloading system

7.Auto Label, Load and Unload machines is designed for maximum productivity with minimum labor.

8.Automatic labeling and sheet processing can be carried out simultaneously.

9.With typesetting optimization system, this center can carry out routing and drilling in all kinds of shapes and reduce the waste.

10.Syntec system,stable performance, people can handle it without any professional knowledge.

11.Eight position tool magazine that satisfy different types of requirements, thus increasing the machine’s versatility.

12.Available in any kinds of table size with boring head and automatic tool changer.

13.Boring head and automatic tool changer are optional

Advantage:

1.The lathe is founded by high-quality steel that ensures the high stability ,all the three axises are using imported straight-quadrate rails.
2.Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.
3.Using high accurate pinion and rack transmission. The highest speed is 15m/min. It can clearly engrave the 1mm small word.
4.Spindle adopts 9KW HSD air-cooling motor made in ITALY(Optional), which is very powerful and with little noise .It can work continuely without maintaining.
5.Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.

6.Highly automated nesting solution with automatic feeding and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time.
