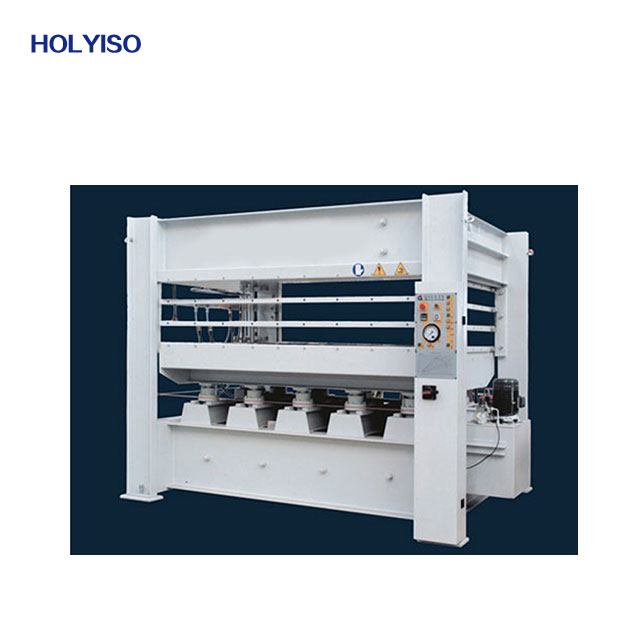

Model：

AY214×8/16(3)H1RC

Total pressure：

1600KN/160T

Specific pressure:

5.3Kgf/cm2

Working layer：

3

Platen No.& Size：

4-2500x1300x42mm(Covered with mylar)

Platen opening：

120mm

Cylinder No.& Dia：

10-φ85mm

Max temperature：

120℃

Heating way：

Electric heating with thermic oil

Heating medium:

Thermic oil

Installation power：

53.5KW

Platen opening way：

Manually

Loading way：

Length side,Manually

Voltage：

380V 50HZ

Packing：

Bare but properly secured

Gross Weight：

About 8500.00 kg

Overall dimension:

3800*1410*2350mm

Container need：

1X20'GP

Payment：

30% by T/T as deposit, 70% by T/T before shipment.

Remark：

The S.S platen is prepared by user

Delivery time:

30 days
